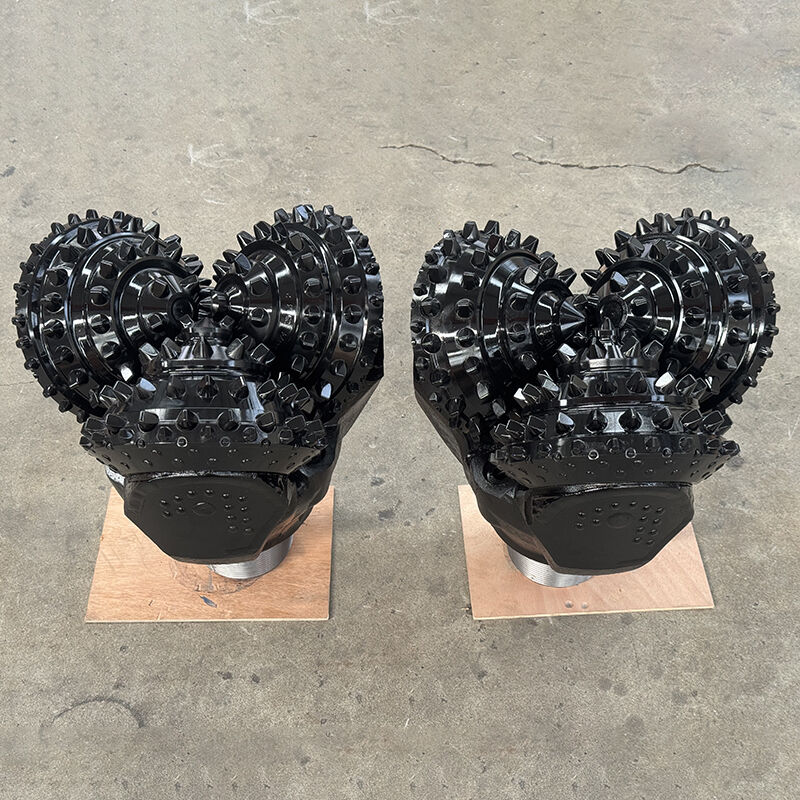

444.5mm（17 1/2”）IADC 517 Drilling Tricone Bit Tricone Rock Drilling Head Bit For Oil Well Drilling Rigs Rock Tricone

Tempat asal:

Hebei, Tiongkok

Sertifikasi:

ISO9001

Hubungi Kami

Minta Kutipan

Rincian produk

Tipe Formasi:

Lumpur, Pasir, Shale

Jenis nosel:

Tetap

Spesifikasi:

Matriks atau Badan Baja

Pasar:

Global

Ukuran kerucut:

Tersedia berbagai ukuran

Jenis:

TCI atau gigi baja

Jenis bantalan:

Bantalan Jurnal

Syarat Pembayaran & Pengiriman

Harga

dapat dinegosiasikan

Kemasan rincian

Sesuai Dengan Kebutuhan Pelanggan

Waktu pengiriman

5-15 hari kerja

Syarat-syarat pembayaran

T/T

Menyediakan kemampuan

50000pcs/Bulan

Produk terkait

video

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

Dapatkan Harga Terbaik

video

374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

Dapatkan Harga Terbaik

Small Size Tricone Bit Package

Dapatkan Harga Terbaik

20 Inch Tci Tricone Bit,IADC535 Tricone Bor Bits Baru Forging Air Pengeboran Rotary

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

444.5mm(17 1/2”)IADC 517 Drilling Tricone Bit Tricone Rock Drilling Head Bit For Oil Well Drilling Rigs Rock Tricone

The main ways in which the three cone drill bit crushes rocks are impact and crushing. The impact force and static pressure generated by its longitudinal oscillation all lead to the impact and crushing effect of the teeth on the soil, forming volume crushing pits; The auxiliary methods are sliding and shearing, and the radial and tangential movement on the teeth causes a shearing effect underground, fracturing the rock between the teeth; The erosion effect of the jet is achieved by the rapid jet sprayed from the nozzle, which has an impact effect on the rock underground and assists in the fragmentation of the rock.

Under the effect of drilling pressure and drill string rotation, the teeth crushed and also ate into the rock, and at the same time, there was some sliding and shearing of the rock. When it rolls at the bottom of the well, the teeth above it will successively impact and press into the formation, which can crush a part of the rock at the bottom of the well. At the same time, relying on its sliding, the shear effect weakens the remaining rock between the teeth, causing the rock at the bottom of the well to be completely broken and the wellbore to extend

PRODUCT SPECIFICATIONS
series	CA
tooth type	TCI
connection	6 5/8" Reg PIN
bearing	Open bearing bit
Nozzle	three jet nozzles
application	Mining,water well,oil well,HDD,exploration,etc
weight	78kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	415	435	445	515,525	535,545	615,625	635,645	735,835
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40
